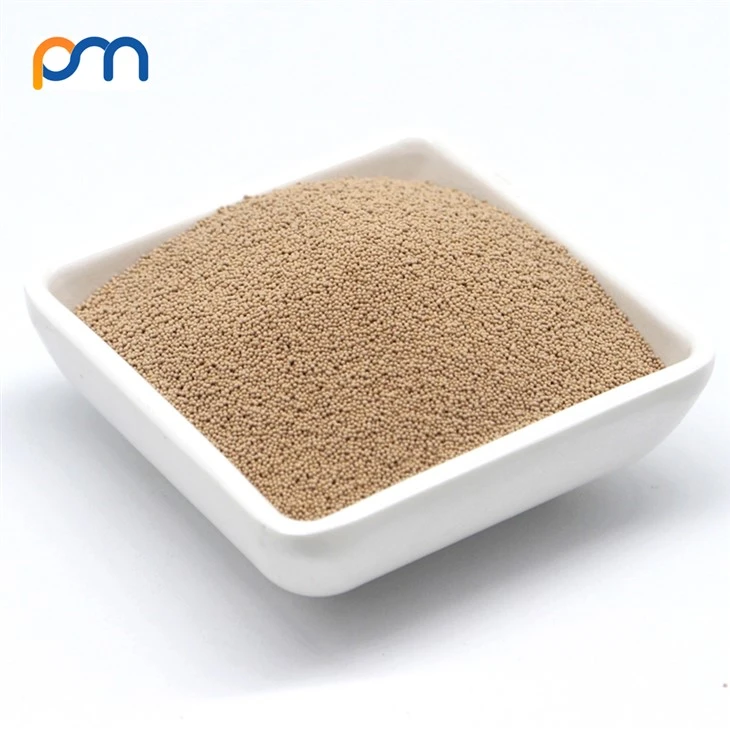

0.4-0.8mm 1.6-2.5mm 13X HP Molecular Sieve For Oxygen Generator
13X HP Molecular Sieve

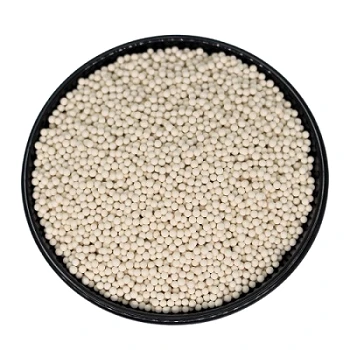

13X HP molecular sieve is light yellow desiccant adsorbent, widely used as adsorbents to remove the nitrogen from oxygen to obtain pure oxygen. which has higher N2 adsorption capacity and better effect in the N2/O2 separation process. It is mainly used in PSA oxygen concentrators and oxygen concentrators device, and as well as the industrial PSA unit.
Technical Parameter
|
Model |
13X HP Molecular Sieve |
|
|
Color |
Light gray |
|
|
Nominal pore diameter |
10 angstroms |
|
|
Shape |
Sphere (ball) |
|
|
Diameter (mm) |
0.4-0.8 |
1.6-2.5 |
|
Loss on Ignition (wt%.575℃, 1hr) |
≤1.0 |
≤1.0 |
|
Bulk density (g/ml) |
≥0.63 |
≥0.63 |
|
Crushing strength (N) |
/ |
≥30/piece |
|
Static H2O capacity (wt% RH60%,25℃) |
≥30 |
≥30 |
|
Static CO2 capacity(wt% 250mmHg, 25℃) |
≥19.8 |
≥19.8 |
|
Attrition (wt%) |
≤0.2 |
≤0.2 |
|
Particle Ration (%) |
≥95 |
≥97 |
|
N2 capacity(ml/g,) |
≥8 |
≥8 |
|
N2/O2 Selectivity(a,) |
≥3 |
≥3 |

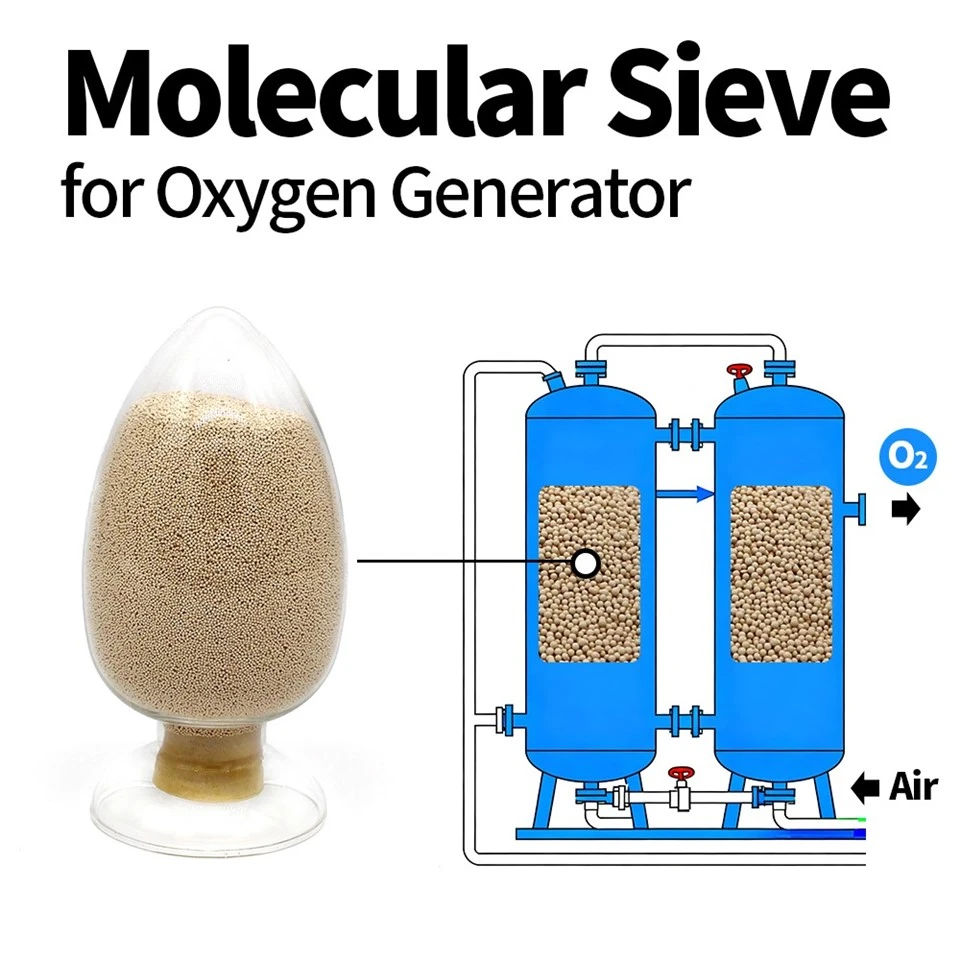

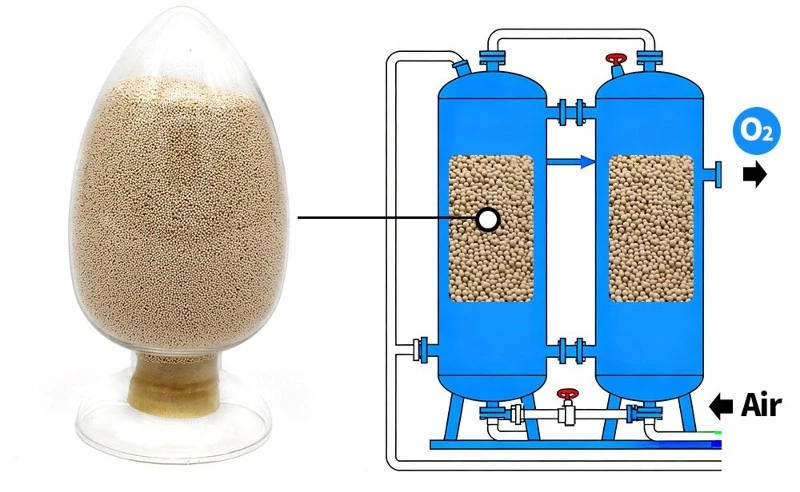

The working principle of 13X HP molecular sieves is mainly based on their physical adsorption and molecular sieving effects. When a mixed gas passes through the molecular sieve bed, polar molecules with smaller pore sizes (such as nitrogen, water, and carbon dioxide) are selectively adsorbed into the cavities inside the crystal, while molecules with larger diameters or that are not easily adsorbed (such as oxygen) pass through, thereby achieving gas separation and purification.
Products Application
PM 13X HP molecular sieve has high adsorption capacity, high oxygen purity, which can reach up to 93%-96%,is equal to molecular sieve jlox-501. It is widely used in PSA oxygen generator, such as industrial / medical oxygen generator, household/ portable oxygen concentrator.

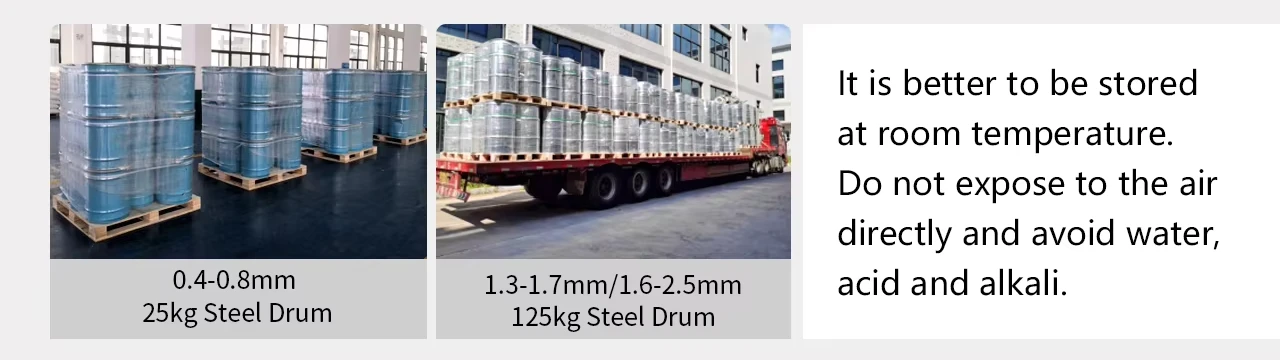

Our Packages
Our Factory

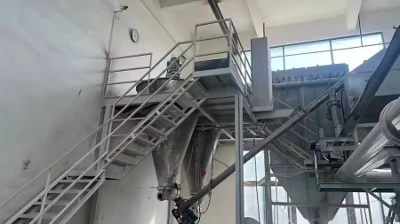

Mixing

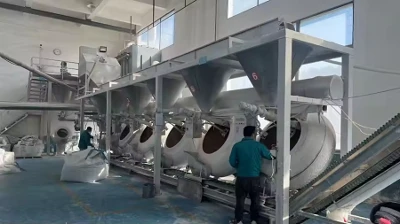

Rolling

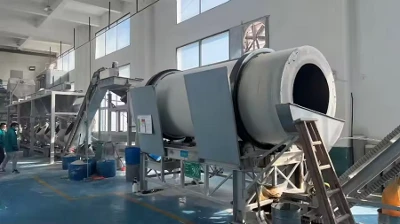

Sieving

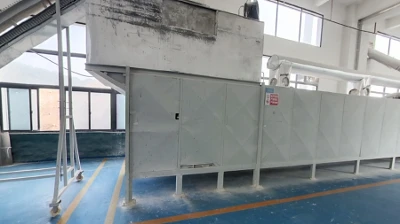

Drying

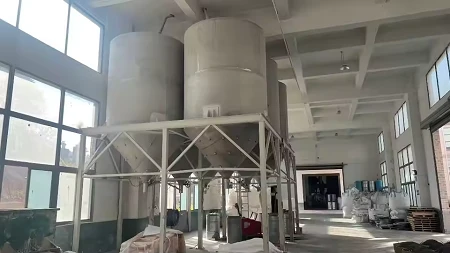

Cooling

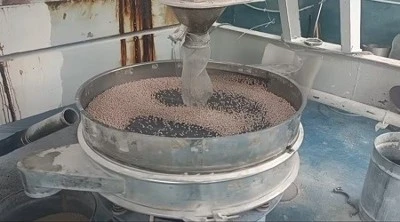

Sieving Again

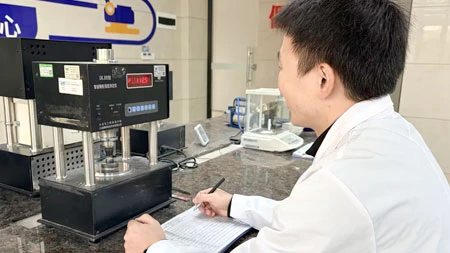

Quality Testing

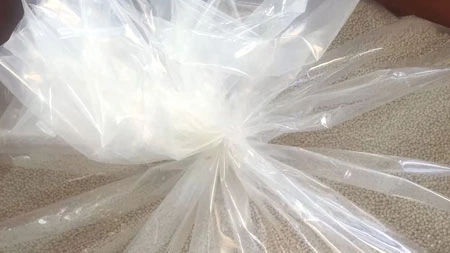

Packaging

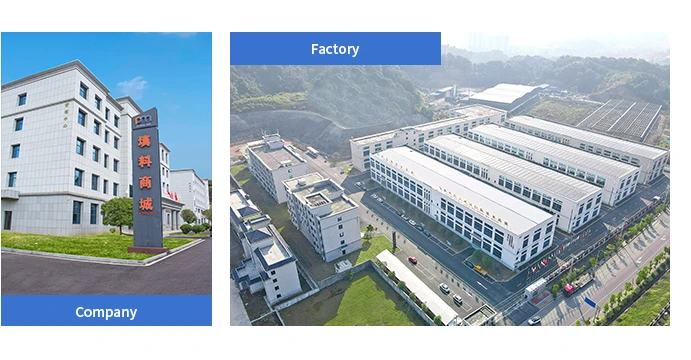

Our Company
Pingxiang Super Packing Mall (PM) has been established for more than 20 years, is located in Jiangxi Pingxing province. Packing Mall is a leading domestic manufacturer of adsorbents and desiccants, and our products have been exported to more than 140 countries overseas. Our mainly products includes molecular sieve, activated molecular sieve powder, activated alumina, ceramic ball, tower packing, silica gel, catalyst etc. They are widely used in chemical, petroleum, electronic, air separation, gas purification, medical and environmental industries.
one-stop solution
professional team
high quality
We not only provide high quality products, but good service. If you are interested in our product, company or factory, please contact us, we will contact you by email.
Our address
Shangxian West Road, Xinsanban Industrial Park, Pingxiang Economic and Technological Development Zone, Pingxiang City, Jiangxi Province
