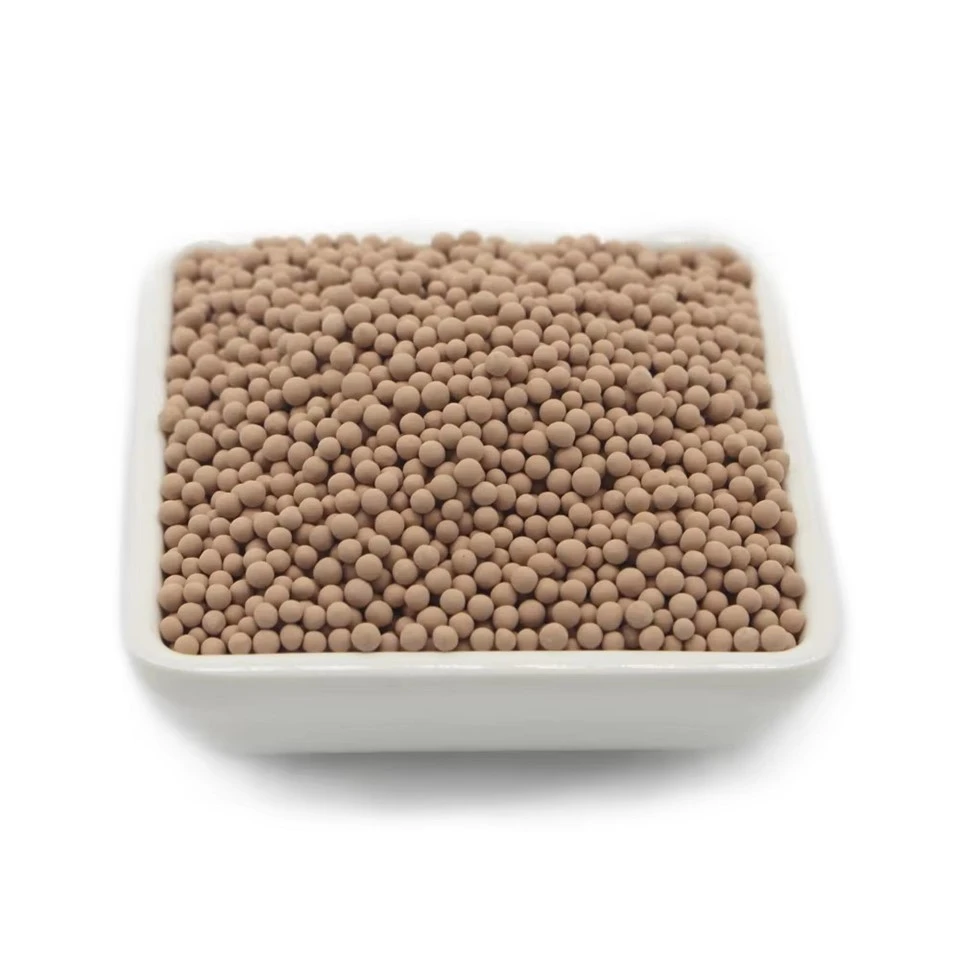

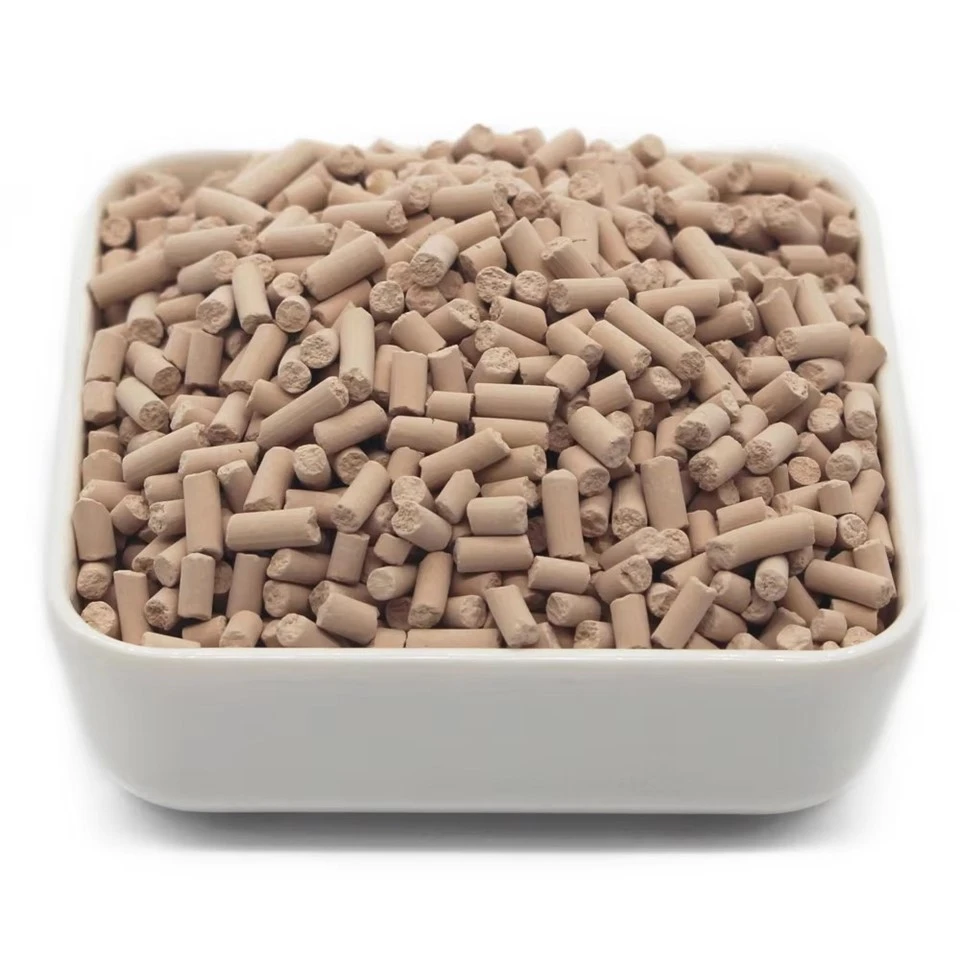

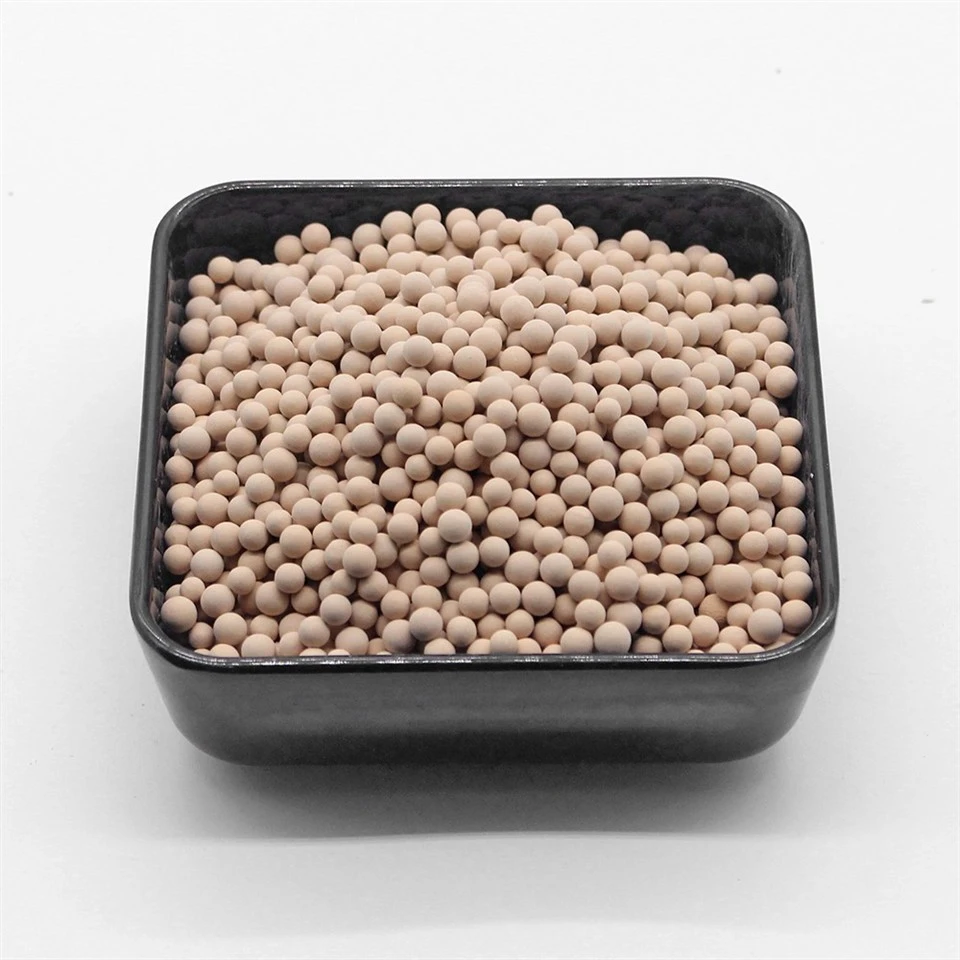

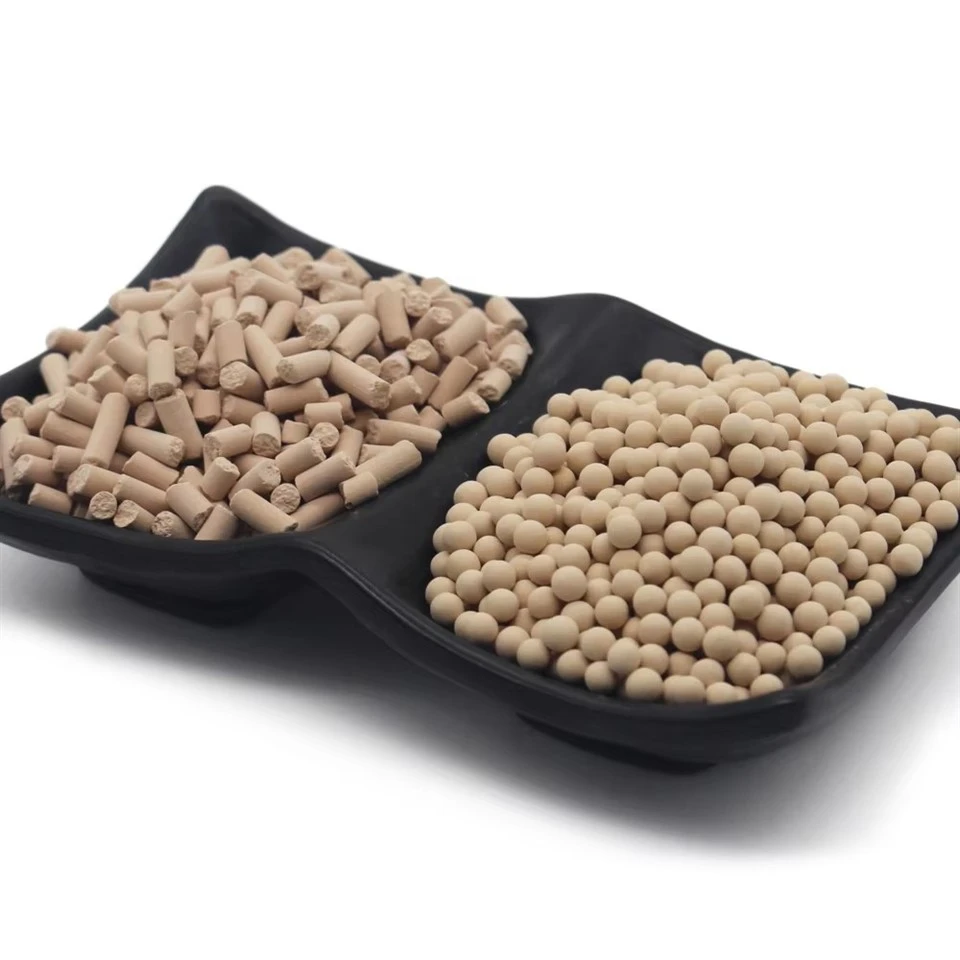

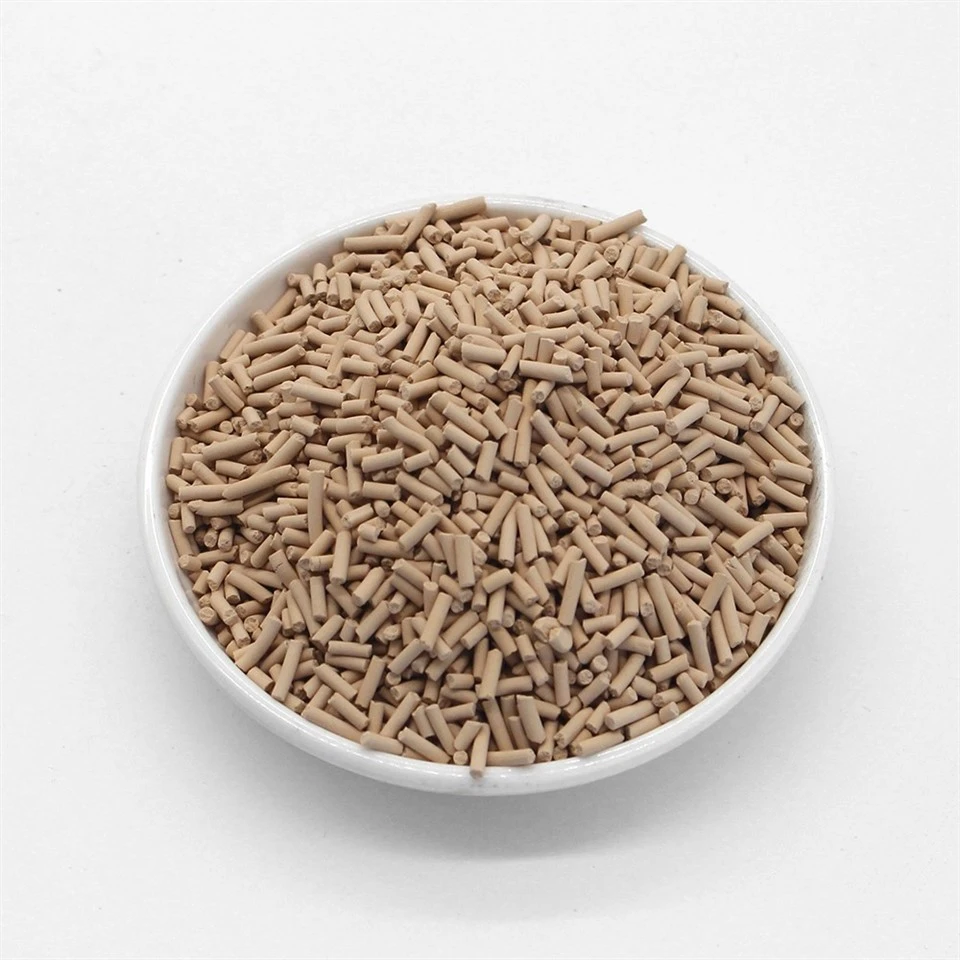

3A 4A 5A 13X And 13X APG Molecular Sieve
Super Packing Mall Molecular Sieve, also know as synthetic zeolite, is a type of desiccant and adsorbent. Molecular sieves have uniform, fine pores that can selectively adsorb molecules based on their size, shape, and polarity. They are primarily used for gas and liquid drying and purification, desulfurization, and carbon dioxide removal, and are known for their high adsorption rate, high adsorption capacity, and chemical stability.
Super Packing Mall Molecular Sieves includes 3A, 4A, 5A, 13X, 13X APG molecular sieve. Due to their versatility and efficiency, they are indispensable in industries including petroleum, chemical, pharmaceuticals, electronics and environmental, air separation, gas purification etc.
Technical Parameter
| Model | 3A | 4A | 5A | 13X | 13X APG | |||||||||||||||
| Color | Light Yellow | |||||||||||||||||||
| Nominal pore diameter | 3 angstroms | 4 angstroms | 5 angstroms | 10 angstroms | 10 angstroms | |||||||||||||||
| Shape | Bead | Pellet | Bead | Pellet | Bead | Pellet | Bead | Pellet | Bead | Pellet | ||||||||||
| Diameter (mm) | 1.6-2.5 | 3-5 | 1.6 | 3.2 | 1.6-2.5 | 3-5 | 1.6 | 3.2 | 1.6-2.5 | 3-5 | 1.6 | 3.2 | 1.6-2.5 | 3-5 | 1.6 | 3.2 | 1.6-2.5 | 3-5 | 1.6 | 3.2 |
| Size ratio up to grade (%) | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥96 | ≥96 | ≥96 | ≥94 | ≥98 | ≥98 | ≥95 | ≥95 | ≥98 | ≥98 | ≥95 | ≥95 |
| Bulk density (kg/l) | ≥0.7 | ≥0.7 | ≥0.68 | ≥0.68 | ≥0.7 | ≥0.7 | ≥0.66 | ≥0.66 | ≥0.68 | ≥0.68 | ≥0.66 | ≥0.66 | ≥0.64 | ≥0.64 | ≥0.61 | ≥0.61 | ≥0.64 | ≥0.64 | ≥0.61 | ≥0.61 |
| Crushing strength (N) | ≥35 | ≥100 | ≥35 | ≥50 | ≥35 | ≥100 | ≥40 | ≥80 | ≥30 | ≥80 | ≥30 | ≥50 | ≥30 | ≥85 | ≥30 | ≥50 | ≥25 | ≥80 | ≥25 | ≥45 |
| Wear ratio (%) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.4 | ≤0.4 | ≤0.2 | ≤0.2 | ≤0.4 | ≤0.4 |
| Static H2O adsorption (%) | ≥21 | ≥21 | ≥21 | ≥21 | ≥22 | ≥22 | ≥22 | ≥22 | ≥22 | ≥22 | ≥22 | ≥22 | ≥26 | ≥26 | ≥26 | ≥26 | ≥26.5 | ≥26.5 | ≥26.5 | ≥26.5 |
| Ethylene adsorption (‰) | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ||||||||||||||||
| Static CO2 adsorption (%) | ≥18.5 | ≥18.5 | ≥17.5 | ≥17.5 | ≥18.5 | ≥18.5 | ≥18.5 | ≥18.5 | ||||||||||||
| Static methanol adsorption (‰) | ≥15.0 | ≥15.0 | ≥15.0 | ≥15.0 | ||||||||||||||||
| Water content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Product Applications
Our molecular sieve is widely used in petroleum, chemical, natural gas, air separation, electronic, medical, enviromental industries.
3A Molecular Sieve
- Drying of unsaturated hydrocarbons, such as ethylene, propylene, butadiene.
- Drying of petroleum cracked gas.
- Drying of natural gas and methane gas.
- Drying of polar liquid, such as methanol, ethanol.
- Solvent Dehydration
- Air Drying
4A Molecular Sieve
- Deep drying of gases and liquids, such as air, natural gas, alkanes and refrigerants.
- Solvent dehydration.
- Static drying of pharmaceutical packaging and electronic components.
- Used in air compressor and adsorption dryer.
5A Molecular Sieve
- Drying, dehydration and desulfurization of natural gas.
- Air purification, dehydration and carbon dioxide removal.
- Pressure swing adsorption devices for producing oxygen, hydrogen and carbon dioxide.
- Dehydration of lithium-ion battery electrolyte.
13X Molecular Sieve
- Drying and desulfurization of natural gas, liquefied petroleum gas and liquid hydrocarbons.
- Removing moisture and carbon dioxide from air and other gases.
- Removing moisture and sulfur from liquid petroleum gas and liquid natural gas.
- Production of oxygen in PSA unit.
- LPG purification and deodorization in air freshener spray.
- Deodorizing for aerosol spray.
13X APG Molecular Sieve
Mainly used in cryogenic air separation to remove carbon dioxide and water from air.
Our Packing
Iron drums
Paper Bag
Paper Drums
Super Sack
Production Process
Mixing
Rolling
Sieving
Drying
Cooling
Quality Testing
Packing
Warehousing
