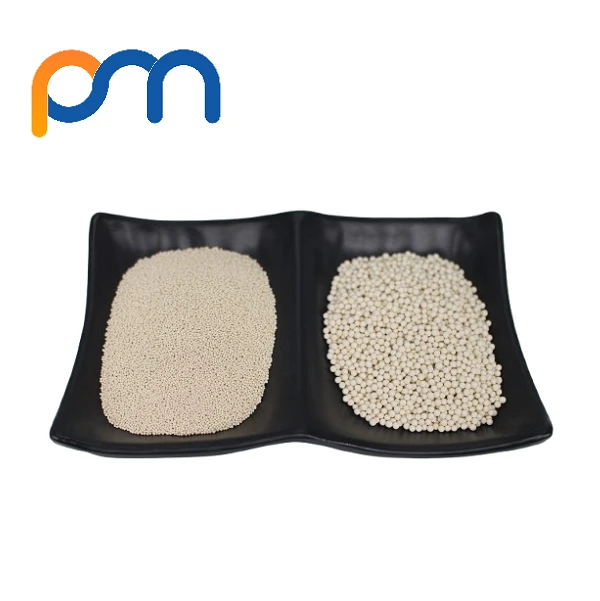

13X HP And Lithium Molecular Sieve For Oxygen Generator
13X HP and Lithium Molecular Sieve for Oxygen Generator
PM Oxygen Molecular Sieve is specially developed for the production of oxygen by PSA Pressure Swing Adsorption (PSA) process. It has the characteristics of high nitrogen adsorption capacity and high adsorption selectivity of nitrogen and oxygen, easy desorption, etc.. It is mainly used in PSA oxygen generators and oxygen concentrators device, and as well as the industrial PSA unit.

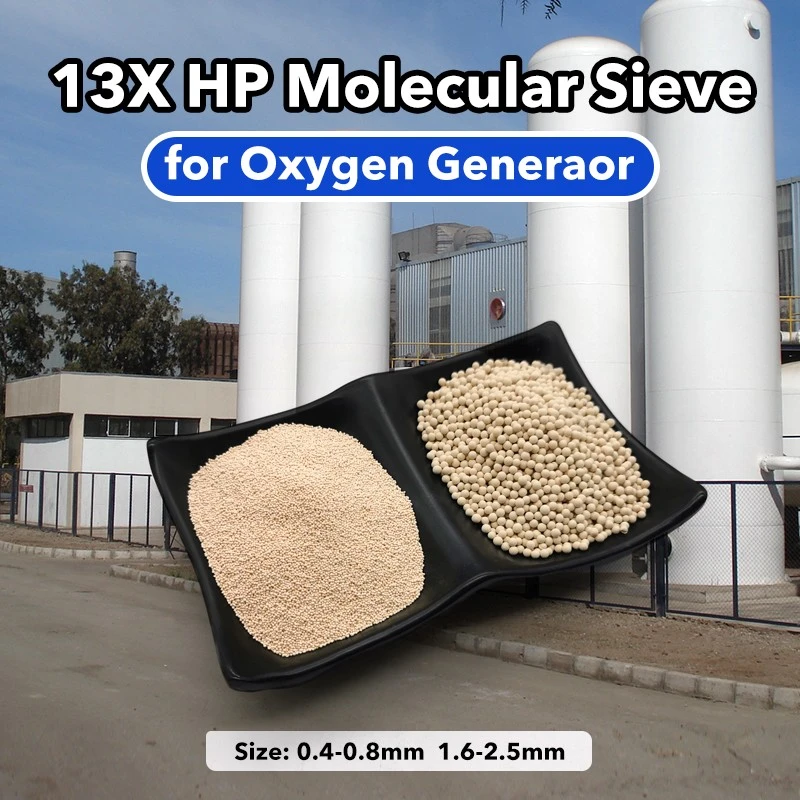

13X HP molecular sieve is a highly efficient and reliable adsorbent material used in PSA oxygen concentrators, providing an effective and stable oxygen supply for industrial and medical applications. PM molecular sieve 13X HP with a nominal pore diameter of 10 angstroms, offers an ideal balance of selectivity and capacity, allowing for efficient and cost-effective oxygen separation and purification. Our 13X HP zeolite has been extensively tested and verified to meet the highest industry standards for oxygen generation and purity, ensuring the safety and efficacy of its use in medical and industrial settings.
Contact Us >>
Technical Parameter
| Model |
13X HP Molecular Sieve |
|
| Color |
Light yellow |
|
| Nominal pore diameter |
10 angstroms |
|
| Shape |
Sphere (ball) |
|
| Diameter (mm) |
0.4-0.8 |
1.6-2.5 |
| Loss on Ignition (wt%.550±10℃, 1hr) |
≤1.0 |
≤1.0 |
| Bulk density (g/ml) |
≥0.63 |
≥0.63 |
| Crushing strength (N) |
/ |
≥30 |
| Static H2O capacity (wt% RH75%,35±1℃) |
≥30 |
≥30 |
| Static CO2 capacity(wt% 250mmHg, 25℃) |
≥19.8 |
≥19.8 |
| Attrition (wt%) |
≤0.2 |
≤0.2 |
| Particle Ration (%) |
≥95 |
≥97 |
| N2 capacity(ml/g) |
≥8 |
≥8 |
| N2/O2 Selectivity(a) |
≥3 |
≥3 |
Lithium Molecular Sieve
PM lithium molecular sieves exhibit high nitrogen-oxygen separation coefficients at extremely low adsorption pressures, thereby reducing oxygen production energy consumption. Compared to ordinary calcium and sodium-type oxygen-generating molecular sieves, lix molecular sieves zeolite offer superior adsorption capacity and separation efficiency, making them suitable for small-scale VPSA (Volume-Specific Aeration Separation) units.
Contact us >>
Technical Parameter
| Model |
Lithium Molecular Sieve |
||
| Color |
Light Yellow |
||
| Shape |
Sphere |
||
|
Diameter
|
(mm) |
0.4-0.8 |
1.3-1.7 |
| (mesh) |
20*40 |
10*16 |
|
| Bulk density (g/ml) |
0.63-0.67 |
0.63-0.67 |
|
| Crushing strength (N/PC) |
≥5 |
≥12 |
|
| Static N2 adsorption (%) |
≥22.5 |
≥22.5 |
|
| N2/O2 separation |
≥6.2 |
≥6.2 |
|
| Water content (%) |
≤0.5 |
≤0.5 |
|
| Wear ratio (%) |
≤1 |
≤1 |
|
Oxygen Molecular Sieve Applications

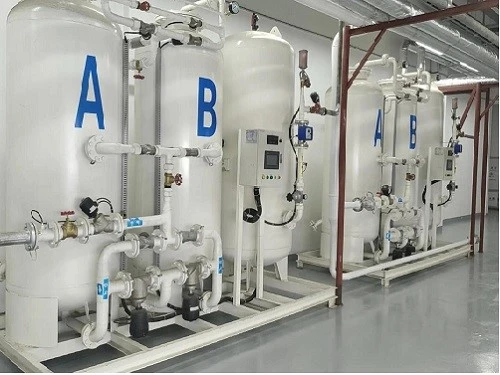

Industrial Oxygen Generator
Hospital Oxygen Systems

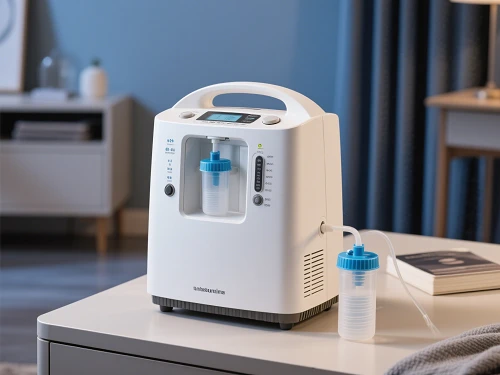

Homable Oxygen Concentrator
Portable Oxygen Concentrator

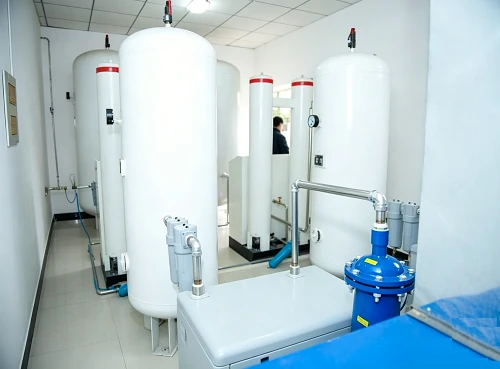

Emergency Oxygen Concentrator

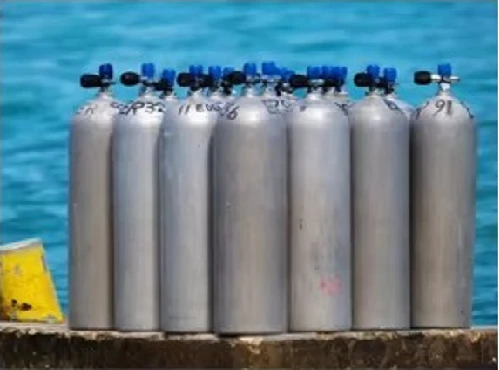

Scuba Oxygen Tank Sand Bottles

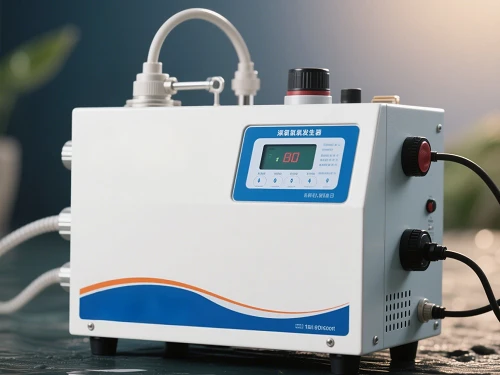

Ozone Generator

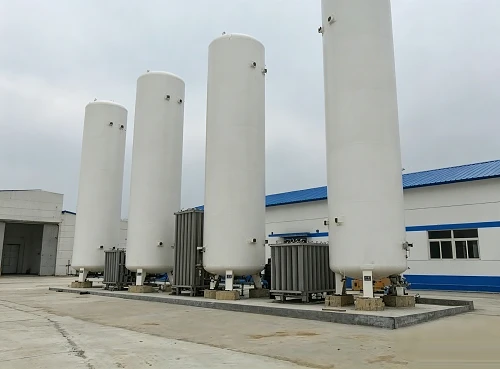

Oxygen Stations
Successful Cases Studies
13X HP Molecular Sieve for Industrial Oxygen Generator
The customer purchased 36 tons of 13X HP molecular sieve and 6 tons of activated alumina for use in an industrial oxygen production unit. We provided the customer with instructions on how to fill the oxygen molecular sieve.
Lithium Molecular Sieve for Medical Oxygen Generator
A Russian customer needed an oxygen molecular sieve for pharmaceutical oxygen production. The customer had very high requirements for the purity of the oxygen produced. After multiple in-depth communications and sample testing, the customer finally purchased a lithium molecular sieve from us, which has an oxygen purity of up to 96%.
Pingxiang Super Packing Mall
Pingxiang Super Packing Mall Co., Ltd established in 2002, located in Jiangxi Provice. And we serves global markets with ISO9001 and ISO14001 certifications.
PM main products include molecular sieve, activated molecular sieve powder, activated alumina, ceramic ball, silica gel, catalyst and tower packing etc. The products are widely used in petroleum, chemical, air separation, natural gas, electronic, equipment, adhesive, new energy, medical, metallurgy and environmental industries.
our Packages And Shipment
Our Factory

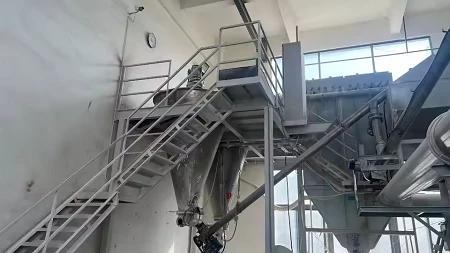

Mixing

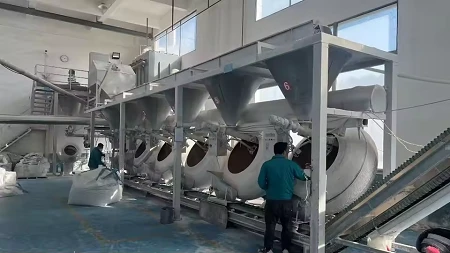

Rolling
Sieving
Drying

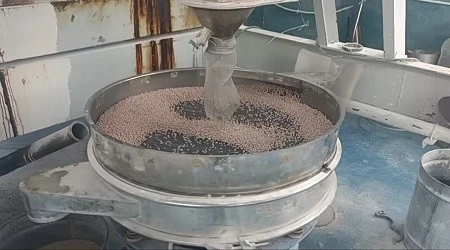

Sieving Again
Cooling
Testing
Packaging
we are here for you
We provide high quality products, professional technique and good service. If you are interested, please contact us freely for your requirements!
