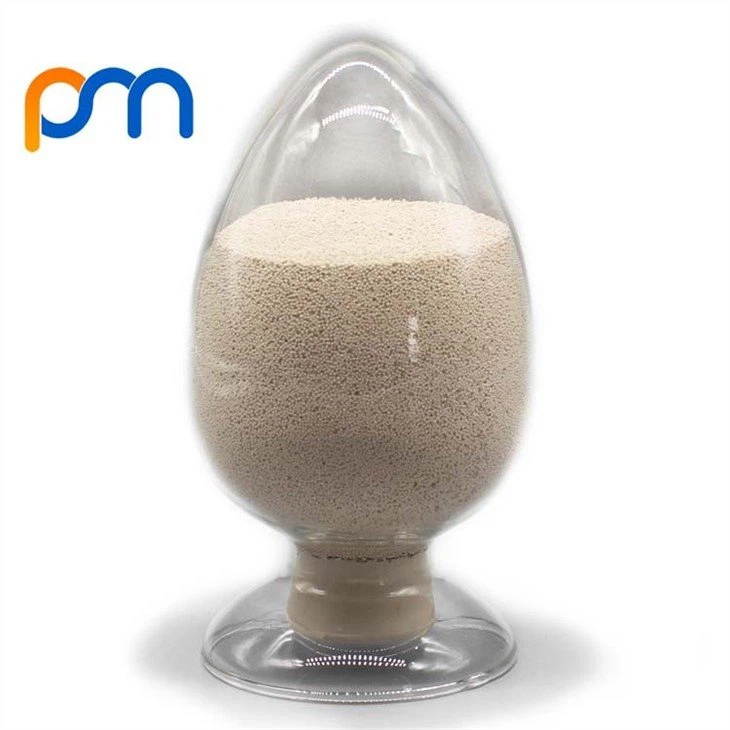

13X HP Molecular Sieve
Molecular Sieve 13X-HP
Packing Mall Molecular Sieve 13X HP is mainly used in PSA oxygen concentrate and oxygen concentrate device. 0.4-0.8mm size is for 2L,3L,5L family oxygen generator. Oxygen purity is about 93 present. As well as the industrial PSA unit, with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity easy desorption and etc.
Model | 13X HP | |
Color | Light gray | |
Nominal pore diameter | 10 angstroms | |
Shape | Sphere (ball) | |
Diameter (mm) | 0.4-0.8 | 1.4-2.4 |
Loss on Ignition (wt%.575℃, 1hr) | ≤1.0 | ≤1.0 |
Bulk density (g/ml) | ≥0.62 | ≥0.62 |
Crushing strength (N) | / | ≥30/piece |
Static H2O capacity (wt% RH60%,25℃) | ≥30 | ≥30 |
Static CO2 capacity(wt% 250mmHg, 25℃) | ≥19.8 | ≥19.8 |
Attrition (wt%) | ≤0.2 | ≤0.2 |
Particle Ration (%) | ≥95 | ≥97 |
N2 capacity(ml/g,) | ≥8 | ≥8 |
N2/O2 Selectivity(a,) | ≥3 | ≥3 |
Hand&Storage Recommendation
It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag or box should be used within 12 months, while bag-in-steel drum should be used within 24 months.
Warranty By National Standard GB/T 10504-2008.
