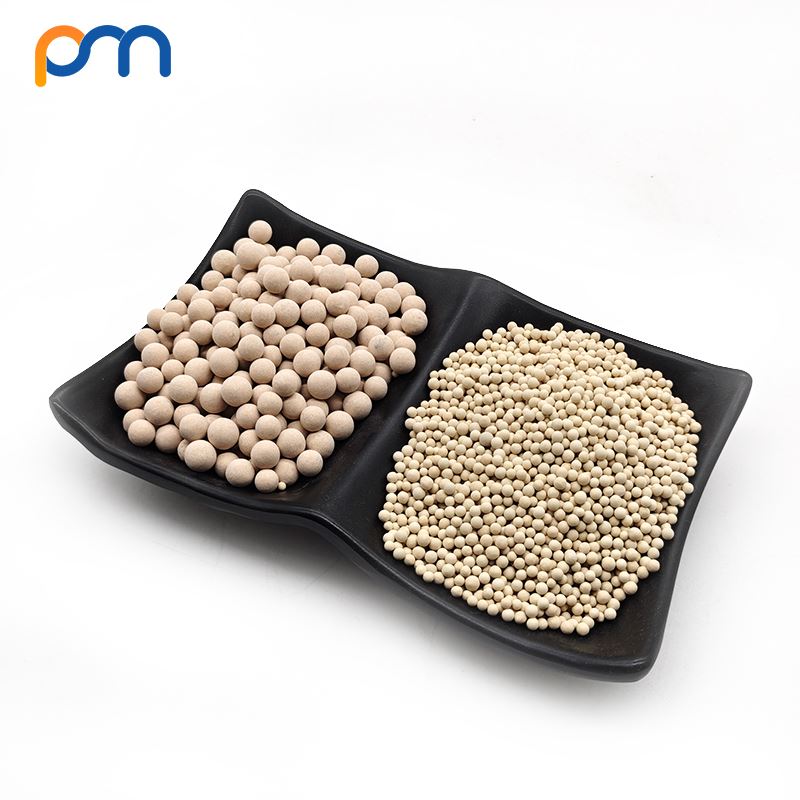

4A Molecular Sieve For Natural Gas Drying
4A Molecular Sieve
Natural gas undergoes multiple stages from the wellhead to the user end, including gathering, processing, pipeline transportation, liquefaction, and cryogenic processing. Water is one of the most destructive impurities in natural gas. Molecular sieve dehydration is currently the most widely used deep dehydration method in industry, offering significant dew point reduction and excellent dehydration effect. 4A molecular sieves, with their unique pore structure and adsorption selectivity, have become the industry standard choice for deep dehydration of natural gas. 4A zeolite is an alkali alumino silicate, and is the sodium form of the type A crystal structure, which has an effective pore opening of about 4 angstroms.
Technical Parameter
|
Type |
4A Molecular Sieve |
|||
|
Color |
Light Yellow |
|||
|
Nominal pore diameter |
4 angstroms |
|||
|
Shape |
Sphere |
Pellet | ||
|
Diameter |
1.6-2.5 (mm) |
3.0-5.0 (mm) |
1.6 (mm) |
3.2 (mm) |
|
Size |
8*12 (mesh) |
4*8 (mesh) |
1/16(inch) |
1/8(inch) |
|
Bulk density (g/ml) |
≥0.70 |
≥0.70 |
≥0.66 |
≥0.66 |
|
Crushing strength (N/PC) |
≥35.0 |
≥100.0 |
≥40.0 |
≥80.0 |
|
Size ratio up to grade (%) |
≥98.0 |
≥98.0 |
≥98.0 |
≥98.0 |
|
Static H2O adsorption (%) |
≥22.0 |
≥22.0 |
≥22.0 |
≥22.0 |
|
Static methanol adsorption(%) |
≥15 |
≥15 |
≥15 |
≥15 |
|
H2O content (%) |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
|
Wear ratio (%) |
≤0.20 |
≤0.20 |
≤0.20 |
≤0.20 |
PM Natural Gas Drying Solution
The 4A molecular sieve has a pore size of approximately 4 angstroms, exhibiting superior selective adsorption performance for water compared to any other molecule. It can precisely adsorb water molecules, CO₂, H₂S, and other harmful impurities in natural gas, while simultaneously removing propane, butane, and larger hydrocarbon molecules. Optimized selection of PM 4A spherical molecular sieves, characterized by high strength, low dust, and high adsorption capacity, increases the bulk density from 0.66 g/mL to 0.70 g/mL without altering the dehydration unit's volume or water absorption capacity. The compressive strength reaches over 100 N/particle, and the static water adsorption value exceeds 22%. After deep dehydration using the 4A molecular sieve, the pressure dew point of natural gas can reach -60°C or even lower, meeting the extremely low dew point requirements for deep natural gas dehydration and LNG production.
- Natural Gas Extraction – Wellhead gas dehydration to meet gathering and transportation requirements
- Natural Gas Processing Plant – Deep dehydration to prepare for cryogenic processing
- Pipeline Natural Gas – Ensuring water dew point meets standards and preventing hydrate formation during pipeline transportation
- LNG Liquefaction – Meeting the stringent water content requirements of the liquefaction process
- CNG Compression – Protecting compression equipment and ensuring CNG quality
- Associated Gas from Oilfields – Deep drying of associated gas before recovery and reuse
in one-stop service
Super Packing Mall is a more than 20 years adsorbent and tower packing manufacturer. Our products include molecular sieves, activated molecular sieve powder, activated alumina, silica gel, catalyst, alumina ceramic balls, metal/ceramic/plastic random tower packing and structured tower packing, etc.
Our products are widely used in petroleum, chemical, fertilizer, oil refining, natural gas, electronics, air separation, polyurethane, metallurgy, environmental protection, fine chemicals, spice factories and other industries.
why choose us
- Guaranteed Quality – Strictly adheres to industry standard HG/T 2524-2010, with each batch of goods accompanied by a test report.
- Stable Supply – Own production lines and a mature raw material supply chain, meeting the continuous procurement needs of large-scale projects.
- Controllable Costs – Direct supply from the source manufacturer, eliminating middlemen and their markups.
- Reduced Risks – High-quality molecular sieves prevent equipment failures, shutdowns, and profit losses from the source.
If you are interested in our product or factory, you can contact us, we will send email for you as soon as possible.
Email: info@cnpackingmall.com
Whatsapp: 18007992872
Hot Tags: 4a molecular sieve for natural gas drying, China, suppliers, manufacturers, factory, customized, wholesale, price, for sale, buy, company, cheap, brand, sample, sourcing, low price, factory price, high quality, in stock, factory supply, 13X APG Zeolite, Lithium Oxygen Molecular Sieve, Molecular sieve for Oxygen Generator, Type 5A molecular sieve, zeolite 13x molecular sieve, zeolite 4a manufacturers
