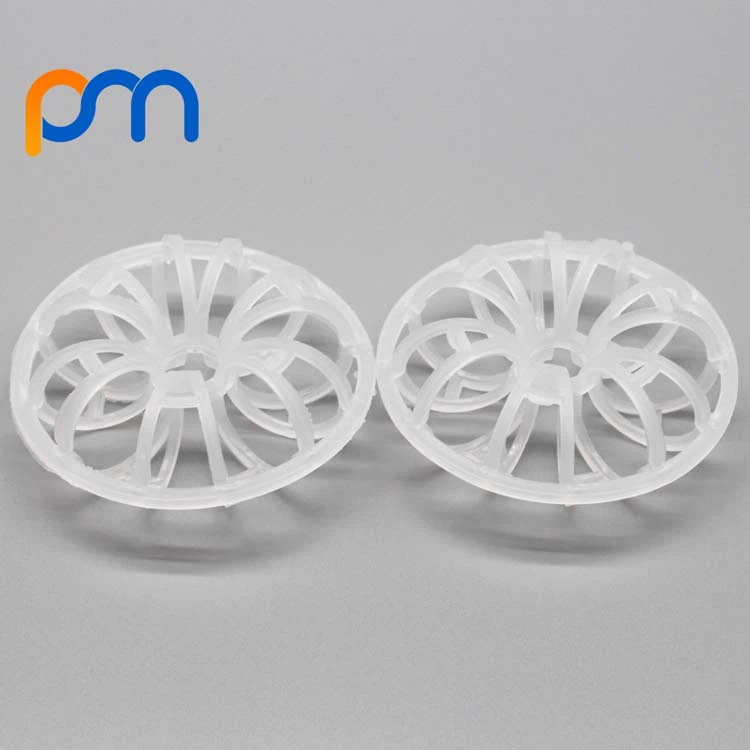

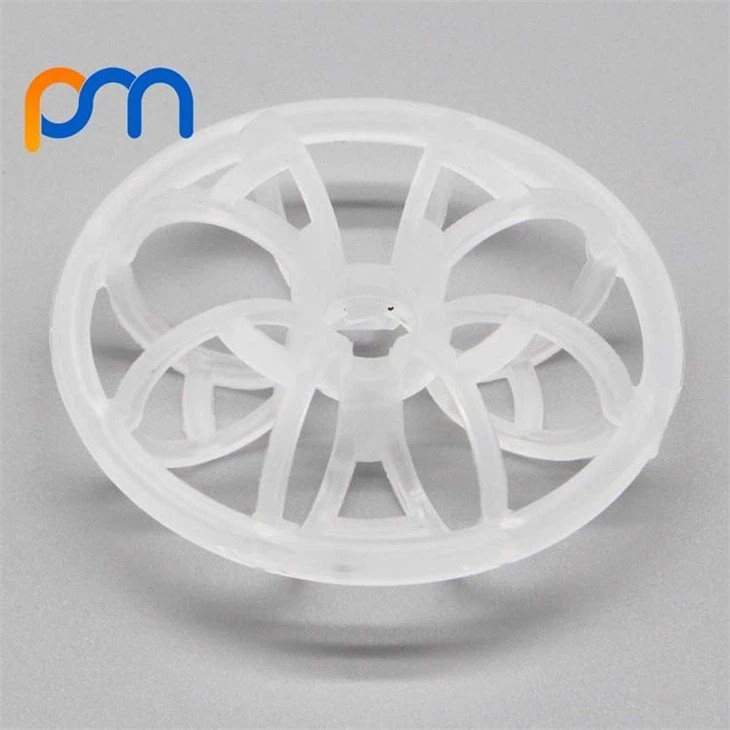

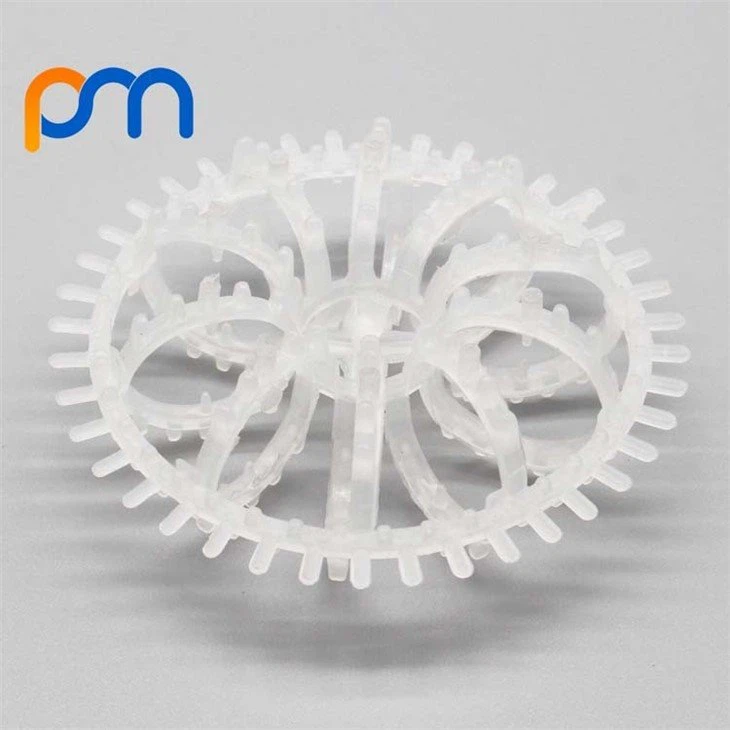

Plastic Tellerate Rosette Ring
Product Introduction:
Plastic Teller Rosette Ring has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60°Cto 150°C. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Material:
PP, RPP, PE, PVC, CPVC, PVDF, etc.
Technical Parameter:
PE | PP | RPP | PVC | CPVC | PVDF | |
Density (kg/m3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
Operation Temp.(Degree C) | 90 | >100 | >120 | >60 | >90 | >150 |
Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Technical Data:
Size (mm) | Surface m2/m3 | Free Vol. % | Number per m3 | Weight kg/m3 |
25*9*(1.5*2) (5 ring) | 195 | 82 | 170000 | 90 |
47*19*(3*3) (9 ring) | 185 | 88 | 32500 | 111 |
51*19*(3*3) (9 ring) | 180 | 98 | 23500 | 103 |
59*19*(3*3) (12 ring) | 150 | 92 | 17500 | 72 |
73*27.5*(3*4) (12 ring) | 127 | 89 | 8000 | 80 |
95*37*(3*6) (18 ring) | 94 | 90 | 3900 | 78 |
145*37(3*6) (20 ring) | 118 | 95 | 1100 | 48 |
Typical Application:
Be widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Normal Package:
1m3/Super sack.
