Ceramic Pall Ring

Super Packing Mall Ceramic Pall Ring, is originated through improvement of Ceramic Raschig Ring.

In the field of chemical industry, the industrial production of many related packed towers is inseparable from Pall rings. Due to the different needs of production equipment, the types of suitable tower packing are also different. For the type selection of random packing, the purpose is to achieve the effect of thermal separation, so that the absorption and desorption process can reach the standard. In this process, the emergence of ceramic Pall rings successfully solved the shortcomings of some production devices, achieved the effect of a separation tower, and made the gas and liquid flow more smoothly.

Pall Ring‘s idea of opening several windows around it is added. Such an idea increases its specific surface area and increases the void ratio. The distribution of voids is relatively uniform, so both the pressure drop and the specific surface area are far superior to Raschig rings. In addition, this type of packing can also be used in high temperature environments or low temperature environments. Because it has good heat resistance, acid resistance, and thermal shock resistance, it can exert its performance in both environments to optimize the production efficiency of devices.

The packing with this structural design can not only increase the wet performance of the packing, but also have a more reasonable cross-section for its height, so that its liquid can be evenly distributed without backflow or overheating.

The structural design of the ceramic Pall ring is specific, and the above-mentioned performance advantages are reflected in the specific design, which is enough to show that this is an optimized filling product, both in terms of performance and overall cost.

In actual chemical industrial production, ceramic Pall rings can be used in containers washed with acidic liquids to filter out excess gas, so the concentration in the liquid is high, and the Pall rings play a role in the reaction related to ozone important role. There are other types of vessels, such as drying towers, some regeneration towers, and cooling towers. Ceramic Pall ring packing can achieve good mass transfer effect.

Ceramic Pall Ring Advantage

Ceramic random packing can resist the corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid. PM ceramic pall ring is suitable for various high, low temperature and strong corrosive occasions. It can be used for drying in chemical industry, metallurgy, gas, oxygen production and other industries. Towers, absorption towers, cooling towers, scrubbers, regeneration towers, etc.

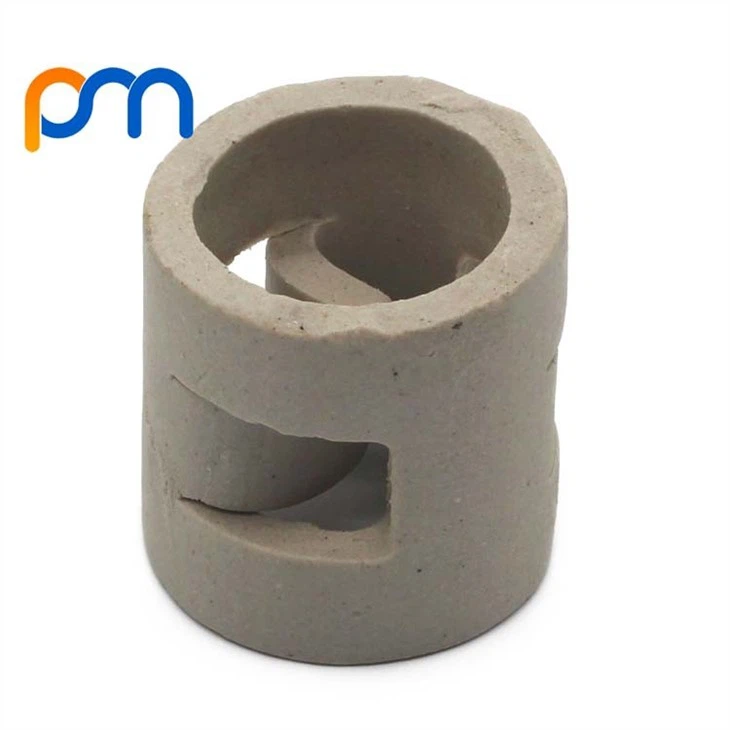

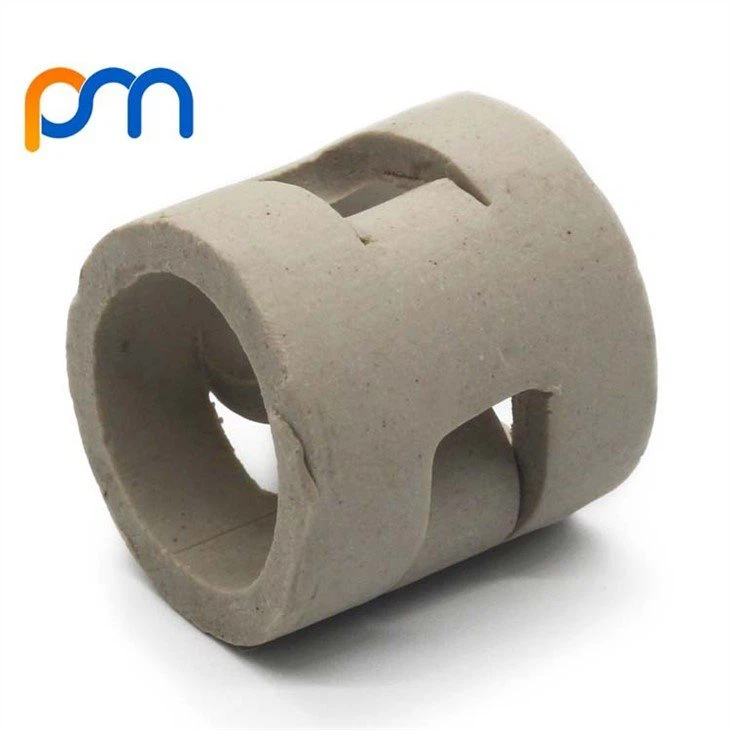

Ceramic Pall Ring Appearance&Function

Ceramic Pall ring packing is a kind of open-hole ring packing with equal height and diameter. Each layer of window hole has two lobes, and each lobes is inwardly bent to the center of the ring. The positions of the upper and lower layers of window holes are oppositely staggered. The hole area accounts for about 30% of the total area of the ring wall. This structure improves the distribution of vapor and liquid, and makes full use of the inner surface of the ring, so that the gas and liquid in the packed tower can pass through the window freely.

Ceramic Pall Ring Packing Application

Packing Mall ceramic pall ring can be widely applied in various packing towers of desiccation, absorption, cooling, washing and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.

Warranty

By National Standard HG/T 4369-2012, GB/T 18749-2008.

Free consultation during the warranty period.

Normal Package

1m3/Jumbo bag.
