Ceramic Raschig Ring for Tower
Product Description
Packing Mall Ceramic Raschig Ring, is the first development of a random packing.
It is the oldest type of chemical packing as a mass transfer media, is widely used as catalyst support.
It has excellent acid resistance and heat resistance, can be used in high or low temperature conditions.
It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid.
Chemical analysis for ceramic raschig ring
Al2O3 | 17-23% |
SiO2 | >70% |
Fe2O3 | <1.0% |
CaO | <1.5% |
MgO | <0.5% |
K2O + Na2O | <3.5% |
Other | <1% |
Geometric Characteristic Data for ceramic raschig ring
Size (mm) | Surface area (m2/m3) | Free volume (%) | Numbers per m3 | Bulk density (kg/m3) |
16*2 | 305 | 73 | 192500 | 690 |
25*3 | 190 | 78 | 49000 | 550 |
40*4 | 126 | 75 | 12700 | 580 |
50*5 | 93 | 81 | 6000 | 550 |
80*10 | 90 | 68 | 1910 | 700 |
Typical Application
Be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Warranty
By National Standard HG/T 4369-2012, GB/T 18749-2008.
Free consultation during the warranty period.
Normal Package
1m3/Jumbo bag.
Hot Tags: ceramic raschig ring for tower, China, suppliers, manufacturers, factory, customized, wholesale, price, for sale, buy, company, cheap, brand, sample, sourcing, low price, factory price, high quality, in stock, factory supply, ceramic corrugated packing, Ceramic Random Column Packing, Ceramic Pall Ring Packing, 38Pall Ring, Ceramic Cascade Mini Ring, 38 Pall Ring
Previous

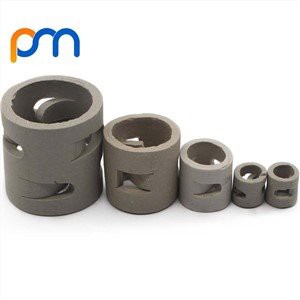

Ceramic Pall RingYou Might Also Like
