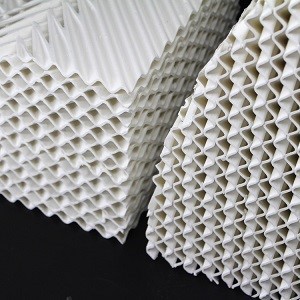

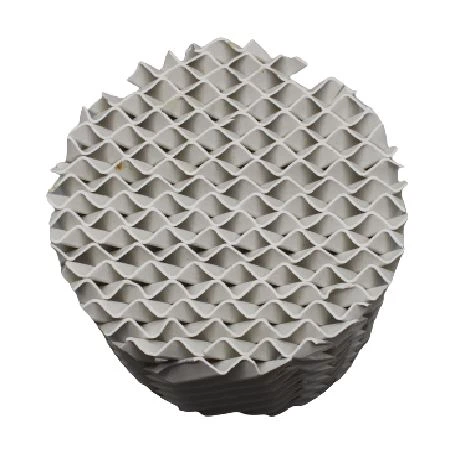

Ceramic Corrugated Packing
Product Introduction:
Ceramic Corrugated Packing is a new type of structured packing consisting of many cylindrical units with the same geometry, and corrugated sheets parallel to each other and superimposed. Due to the unique structure of ceramics, with good hydrophilic properties, the surface of ceramics can form a very thin liquid film turbulence and the inclined and tortuous channel of the air flow can promote the air flow but do not block the air flow so that the ceramic filler can match the metal filler, and its corrosion resistance, high temperature resistance metal filler can not be compared. However, its corrosion resistance and high temperature resistance metal filler cannot be compared.
Compared with random packing filler, Ceramic Corrugated Packing has a series of advantages such as high efficiency, low pressure reduction, large processing capacity, small holding liquid, small amplification effect, large operating elasticity, etc., and corrosion resistance, high temperature resistance, wear resistance, separation efficiency is several times to dozens of times that of random packing, Ceramic Corrugated Packing is mainly to replace the old random filler in the tower, to solve the problem of large resistance, small mass transfer efficiency than the surface area, easy to break and other prominent problems.
According to the different vertical inclination angle of the ripple, Ceramic Corrugated Packing Structured Packing can be divided into X type and Y type, the tilt angle of the X type Structured Packing is 30 degrees, and the tilt angle of the Y type Structured Packing is 45 degrees.
Product Application:
Ceramic Corrugated Packing is used in Gas purification, fertilizer, environmental protection, metallurgy and other industries
Technical Parameter:
Model: | Ceramic Structured Packing | ||||
Shape: | Ripple | ||||
Color: | Grey | ||||
Chemical composition | |||||
SiO2 | Fe2O3 | CaO | Al2O3 | MgO | Other |
≥72% | ≤0.5% | ≤1.0% | ≥23% | ≤1.0% | 2% |
