Carbon Molecular Sieve Supplier
Factory Price 99.99% Nitrogen Generation Carbon Molecular Sieve Manufacturer
Product Description
Super Packing Mall is the Carbon Molecular Sieve Supplier (CMS) in China. CMS is a new type of non-polar adsorbent, its main function is to separate air under normal temperature shift to enrich nitrogen, our quality has reached or even exceeded the international level.
Carbon molecular sieves are widely used in chemical, petrochemical, chemical fiber, medicine, electronics, glass products, coal, heat treatment, metallurgy, storage and transportation, refrigeration and air conditioning, beer and food preservation and other industries.
Carbon Molucular Sieve Application
Air Supply System:
The air will be purified by compression to remove oil, water and dust, then be used by PSA device.
PSA Nitrogen Generation System:
The compressed air flows from bottom to top through the adsorption towers, which is fully filled with CMS. The oxygen will be first adsorbed by the surface of CMS, while nitrogen will still go on flowing to the buffer tank. After adsorbing for a certain time, CMS needs regeneration as it issaturated by oxygen.
Regeneration
Regeneration will be implemented by stopping adsorption and reducing pressure in the tower. The alteration of adsorption and
regeneration of the two towers makes nitrogen generation continuously.
Packing Details
Super Packing Mall as the Top Caron Molecbular Sieve Supplier, Supply following items:

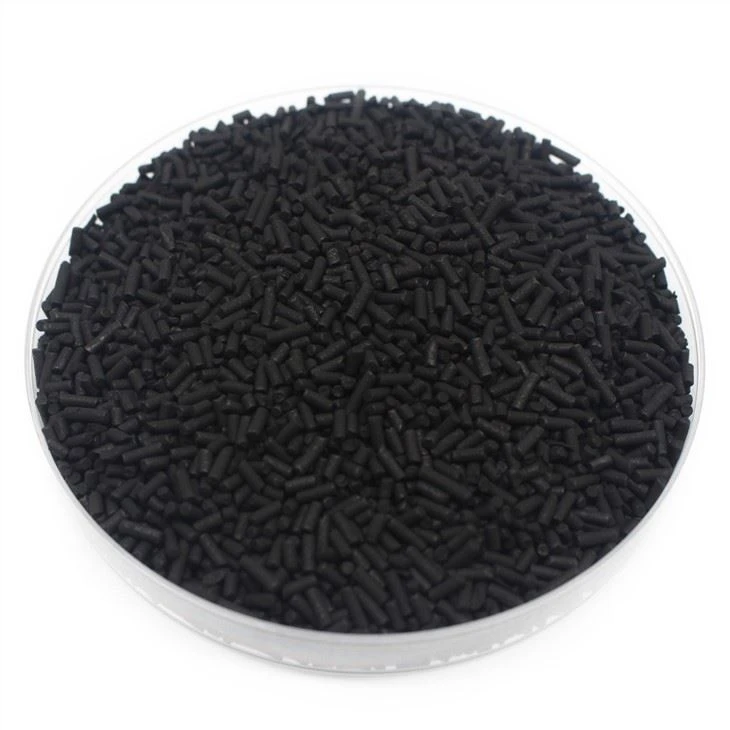

1.Appearance:Black, extruded(pellet)
2.Diameter: 1.3mm:1.6mm or customized
3.Dust level: 100PPM Max.
4.Package: 20kg or 40 kg plastic drum
5.Switch cycle: 60S
6.Bulk density: 640-660 g/l
Technical Parameter（If You Need To Buy Carbon Molecular Sieve For Nitrogen Generation, Contact Us For More Information）
Type | Adsorbent pressure | Nitrogen purity | Nitrogen quantity | N2/Air |
(MPa) | (N2%) | (NM3/h.t) | (%) | |
CMS-200 | 0.8 | 99.99 | 70 | 21 |
99.9 | 140 | 27 | ||
99.5 | 200 | 36 | ||
99 | 260 | 41 | ||
98 | 330 | 48 | ||
CMS-220 | 0.8 | 99.99 | 90 | 25 |
99.9 | 160 | 34 | ||
99.5 | 220 | 43 | ||
99 | 290 | 48 | ||
98 | 360 | 54 | ||
CMS-240 | 0.8 | 99.99 | 100 | 26 |
99.9 | 175 | 35 | ||
99.5 | 240 | 44 | ||
99 | 300 | 49 | ||
98 | 370 | 55 | ||
CMS-260 | 0.8 | 99.99 | 110 | 27 |
99.9 | 190 | 36 | ||
99.5 | 260 | 45 | ||
99 | 310 | 50 | ||
98 | 380 | 56 |

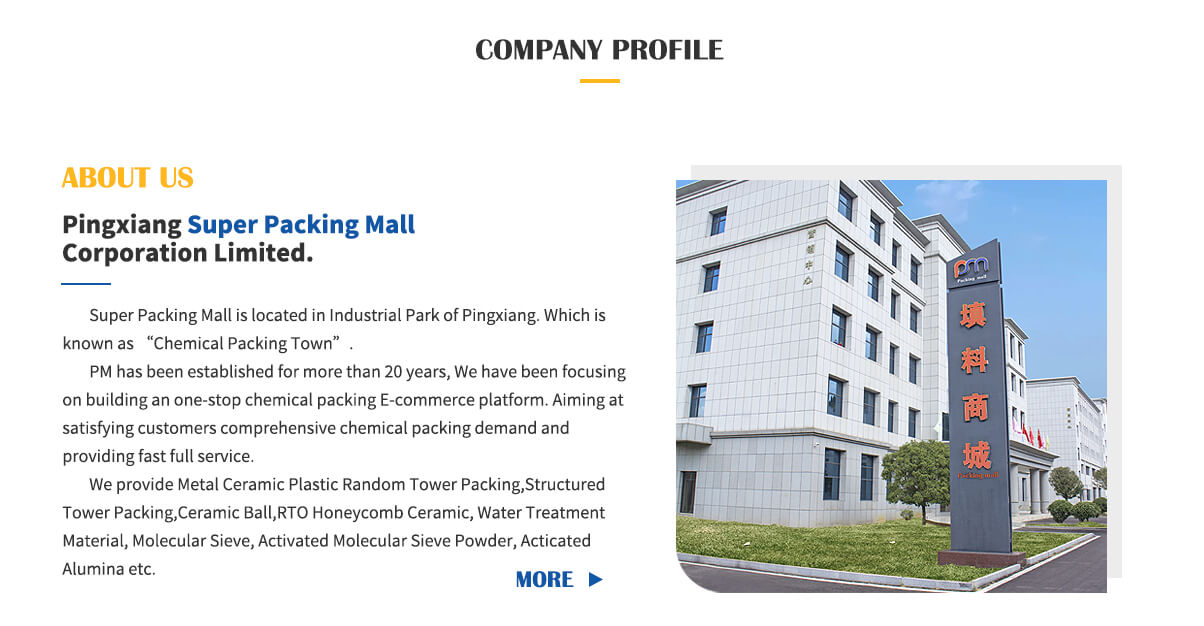

Pingxiang Super Packing Mall Co.,Ltd
"Packing mall" is a one-stop chemical packing mall Co.,ltd.All kinds of chemical fillers,molecular sieves, active alumina, catalysts and other products can be purchased online in packing mall. the products have been widely used in the national electric power, petroleum,chemical, metallurgy, environmental protection,pharmaceutical, aerospace, aviation and other industries, and sold overseas. We promote the“Packing-mall”App, and already establishing a warehouse center of 50,000 m2 to serve the mall.
| Before Sale | After Sale | ||
| 1 | Free samples. | 1 | Comprehensive service with separate after-sale team. |
| 2 | Providing information consulting and technical guidance. | 2 | Satisfied solution while any problem identified. |
| 3 | Packaging can be customized. | 3 | Exclusive and unique solution provided by professional engineers. |
| 4 | Reply you within 24 hours. | 4 | New craft, new technology and other related advisory services. |
Where to buy carbon molecular sieve?
Super Packing Mall Your Reliable Caron Molecbular Sieve Supplier.
